Data centers are the virtual brains and power backbones of the digital global economy

Inscreasing demand in 2025

With our ever-increasing dependence on data, connectivity, and computing power, Data Centers are inevitable for our connected world. Experts estimated that a huge amount of data, approximately 5 quintillion bytes is being generated daily. Thus, the optimal existence and efficient operation of Data Centers in tackling such humongous amounts of data have great significance.

%

Data Center would be using 20% of all available electricity in the world

B

100 Billion devices would be connected

Your Challenges

Latency

Operational continuity of the Data Center with nearly zero unexpected downtime is the highest priority.  Preservation of the building’s existing architecture and constraints is also a prerequisite. A trustworthy energy system and related components are a prerequisite for achieving relentless performance standards.

Security
Cost

Minimize capital outlay and operating expenses: Our solutions promote quick deployment with minimum manpower. Our product solutions with a compact design that is space-saving, reduces installation costs and maintenance frequency. So you can control costs now and plan for future growth only as needed.

Scalability

Scalability is indispensable to accommodate next-generation developments. Provision of a sufficient infrastructure to fulfill escalating demands of the IT industry is becoming challenging for Data Center operators. Reliability and infrastructure uptime is an uttermost demand of data-rich companies, while any outage can have an deteriorating impact on business revenue and daily lives.

Energy Efficiency

Improvements in ‘Energy Efficiency’ are highly commendable as Data Centers impose a great economic burden on their operators as well as an acute environmental impact to global carbon footprints.

Our Applications

Data Center Lighting

Smart lighting solution bring perfect visibility

The most efficient way to provide light in a data center where it is needed.

Busbar trunking system supplier for data center

Much more than just reliable power

Make the most of your energy

Data Cables

Our fiber and copper infrastructure that solves tomorrow’s challenges

Innovative data center solutions that turn data center disruption into business opportunity.

Lighting - Smart lighting brings perfect visibility

The most efficient way to provide light in a data center where it is needed.

Installing LED lighting in a data center improves energy and cost-efficiency. Utilizing sensors and integrating IOT technologies with LED dimming capabilities further reduces energy and cost through “follow-me” lighting, while additionally introducing asset tracking and reducing overall maintenance costs.

Standard industry practice recommends 3 level lighting protocol

  • Level 1: data center unoccupied – there must be adequate brightness for full functionality of security cameras.
  • Level 2: first entry into the data center – lighting should illuminate passageways for the comfortable navigation of the person in the area
  • Level 3: occupied space –  there must be sufficient vertical illumination for maintenance workers to see the intricate details within the racks.  Lighting should be positioned in the middle of the aisles between the racks

Our lighting solutions build future-ready data centers, integrating IoT to improve energy & cost efficiency, security, and eliminating human error. We look forward to becoming your choice partner in implementing a smart data center.

“Follow me” lighting provides light where and when it is needed;

In facilities with this type of policy, lights are turned on manually across a large swath of space when a technician enters the racks to get to a particular small section of the site, such as an aisle. Lights often remain on long after the technician has departed because they were never turned off, sometimes simply because the technician doesn’t know whether anyone else is present or not. This scenario creates a perfect opportunity to introduce innovative lighting control techniques.

“Follow-me” lighting does exactly what a spotlight does, it puts lighting only where the technicians are. As people move through their facility, only the lights above the technician are illuminated. In order to do this, they have motion-detecting sensors at each light fixture. These sensors tie into a central application that determines which lights come on and the light’s intensity.

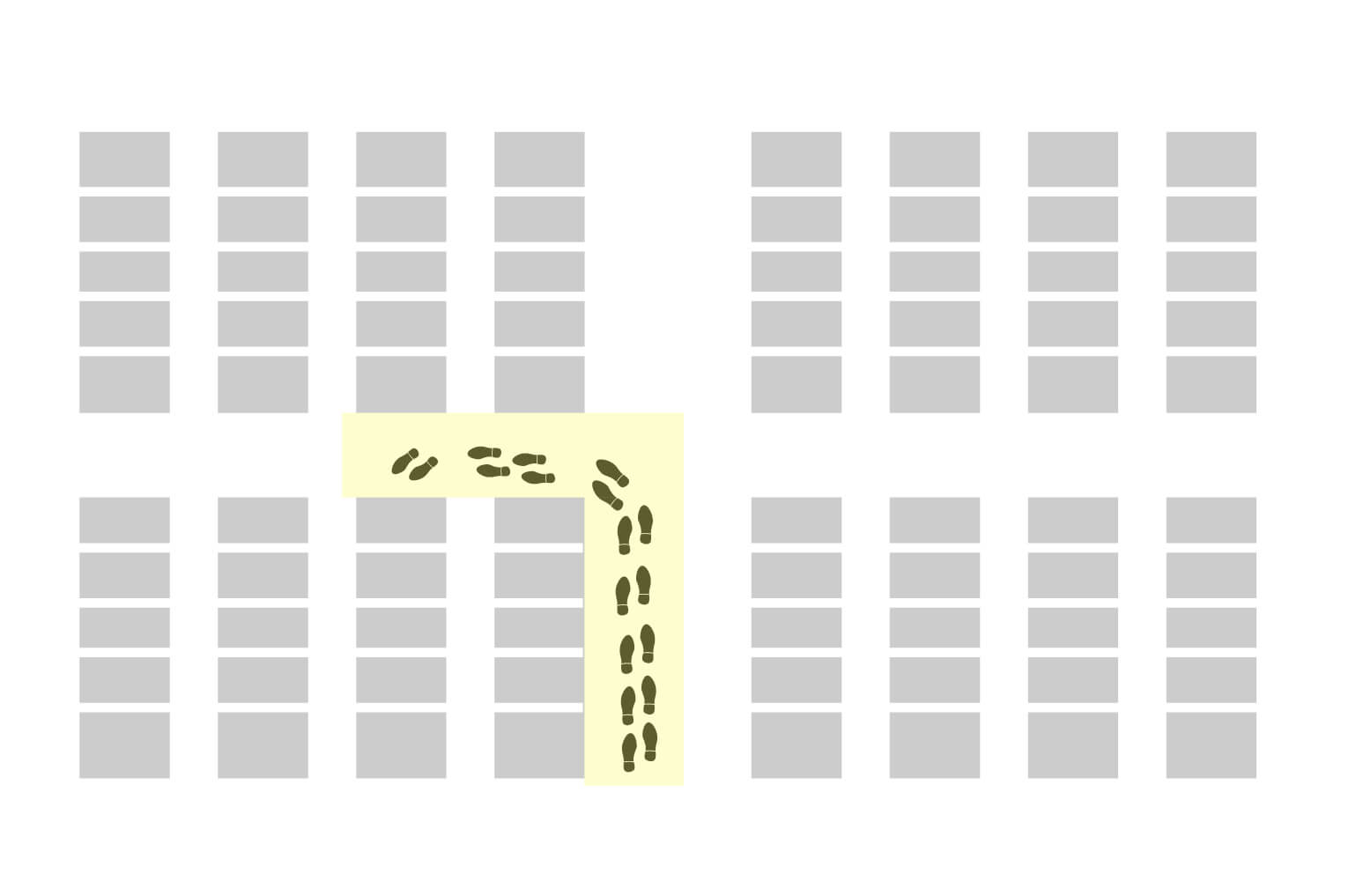

Follow Me lighting for data center

Ensuring adequate vertical illumination from top to bottom of the rack

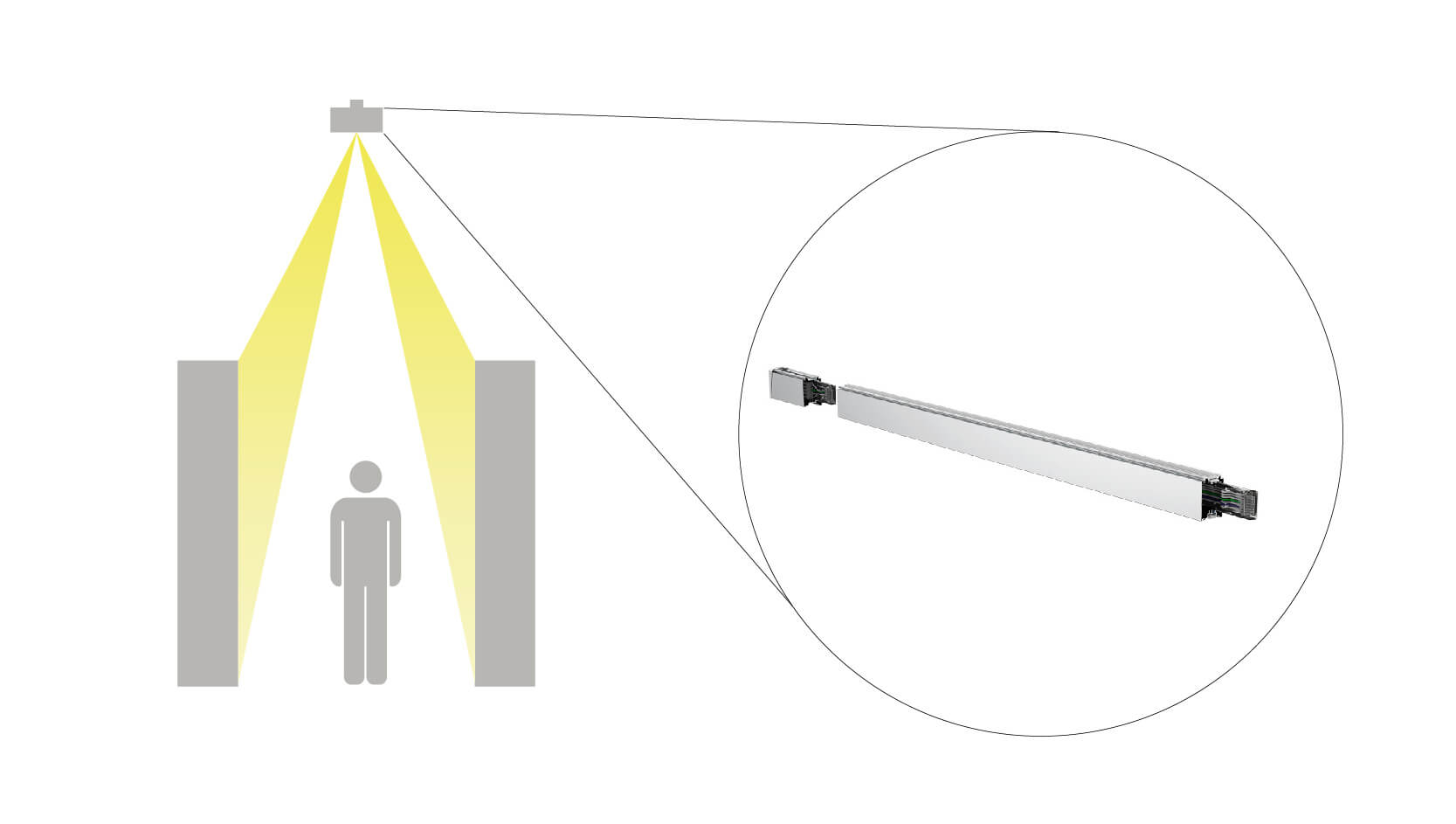

Luminaire selection for a data center begins with identifying the needs of a data center.  It should be dimmable to achieve the three-level lighting protocol.  At Level 3, lighting for maintenance work provides good visibility of the entire rack.  Ensuring the correct lighting distribution requires a double asymmetric beam angle (see fig.1) to ensure adequate vertical illumination from top to bottom of the rack

We possess a range of high-performing lighting solutions that meet the stringent requirements of a data centre, and satisfy the beam distribution requirements for good visibility of the equipment.  In addition to assisting the selection process and fine-tuning the lighting distribution according to the space, we assist in the supervision, testing, and commissioning of the entire lighting system.

Lighting for Data Centers

LEDs offer a longer lifespan than its fluorescent counterpart. Although LEDs may have a higher upfront cost, it utilises 40% less energy than a fluorescent light of the same measurements.  Over time, the energy savings combined with less frequent replacement and maintenance ensures that the cost of the LED is more competitive than the fluorescent.

HVAC costs make up 40%-60% of a data centre’s total energy consumption.  Contributing to the overall heat generation in the space are fluorescent tubes, which give off more heat than a LED fixture.  Switching to LED fixtures lower heat generation, resulting in overall energy and cost savings.

In addition, deploying smart LEDs lays the foundation to transform the lighting network for other Internet of Things (IOT) applications.   A follow-me lighting approach utilising sensors illuminates when movement is detected.  When there is no activity in the data centre, lighting is dimmed down to 10% of its regular brightness (Level 1) to ensure proper monitoring via security cameras of the grounds remotely.  Combining LEDs with the follow-me approach is a remarkable strategy to begin the shift towards an energy-efficient data centre and reduce cost & energy consumption exponentially.

In data center, though they may not have personnel in the data center at all times, their facilities are accessible at all times. Even when people are not present, as a security precaution, they provide lighting to support video surveillance. To achieve the best video resolution possible, data center operators leave the lights on. This is where dimming can have big impact. While cameras work better with better light, the amount of light required is much less than full power.

Our smart lighting solutions integrated with sensors for three level lighting protocol establish the basic infrastructure for data centre connectivity.  From here, there are limitless possibilities to implement a remotely controlled data centre including live asset tracking & security functions.

We offer plug-and-play lighting solutions, meaning that the installation is quick, easy, and requires less manpower to set up the system. Ease of installation also ensures less human error in the installation process, and light fittings can easily be added and taken away due to the modular system.

Connected lighting systems with IOT further reduces maintenance costs and becomes less dependent on physical presence, beginning a shift towards a more remotely operated data centre.  Should anything happen to a fixture, an alert sent to a building or operations manager identifies exactly which light in the unit is facing problems.  As a result, there is less time required by maintenance staff for regular check-ins. All of the information on the lighting system can be found on a remote device, be it a laptop or mobile handphone.

Plug & Play lighting for data center

Power Distribution & Power Tramission

Busbar trunking system supplier for data center

Busbar Trunking System

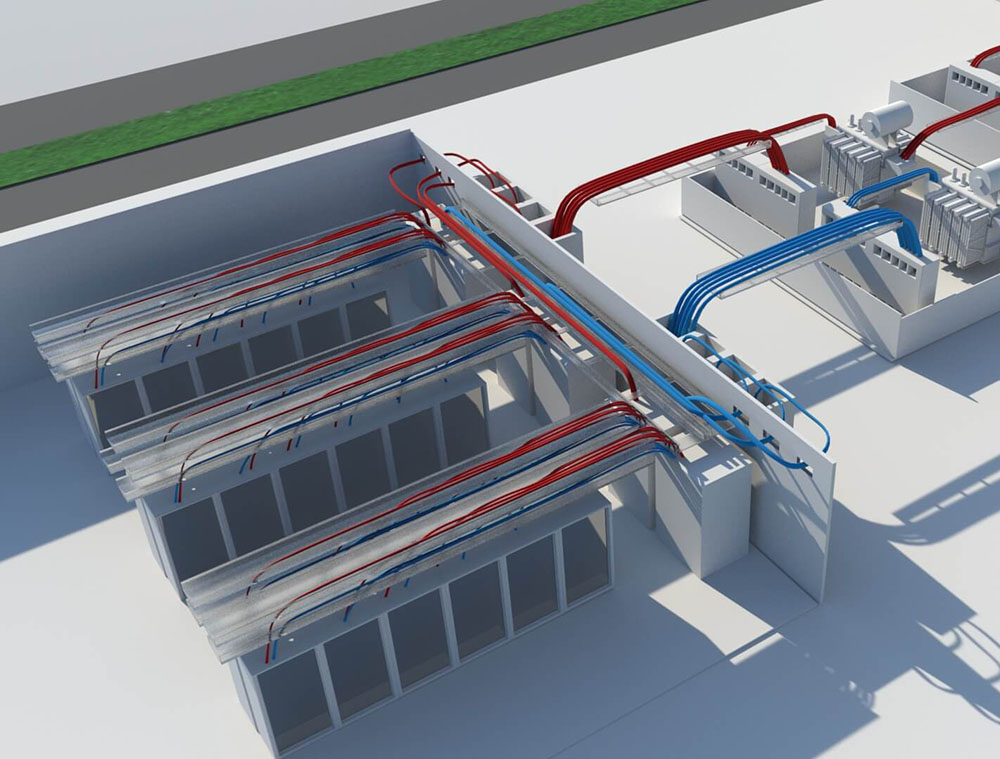

Cable supplier for Data center

Cables

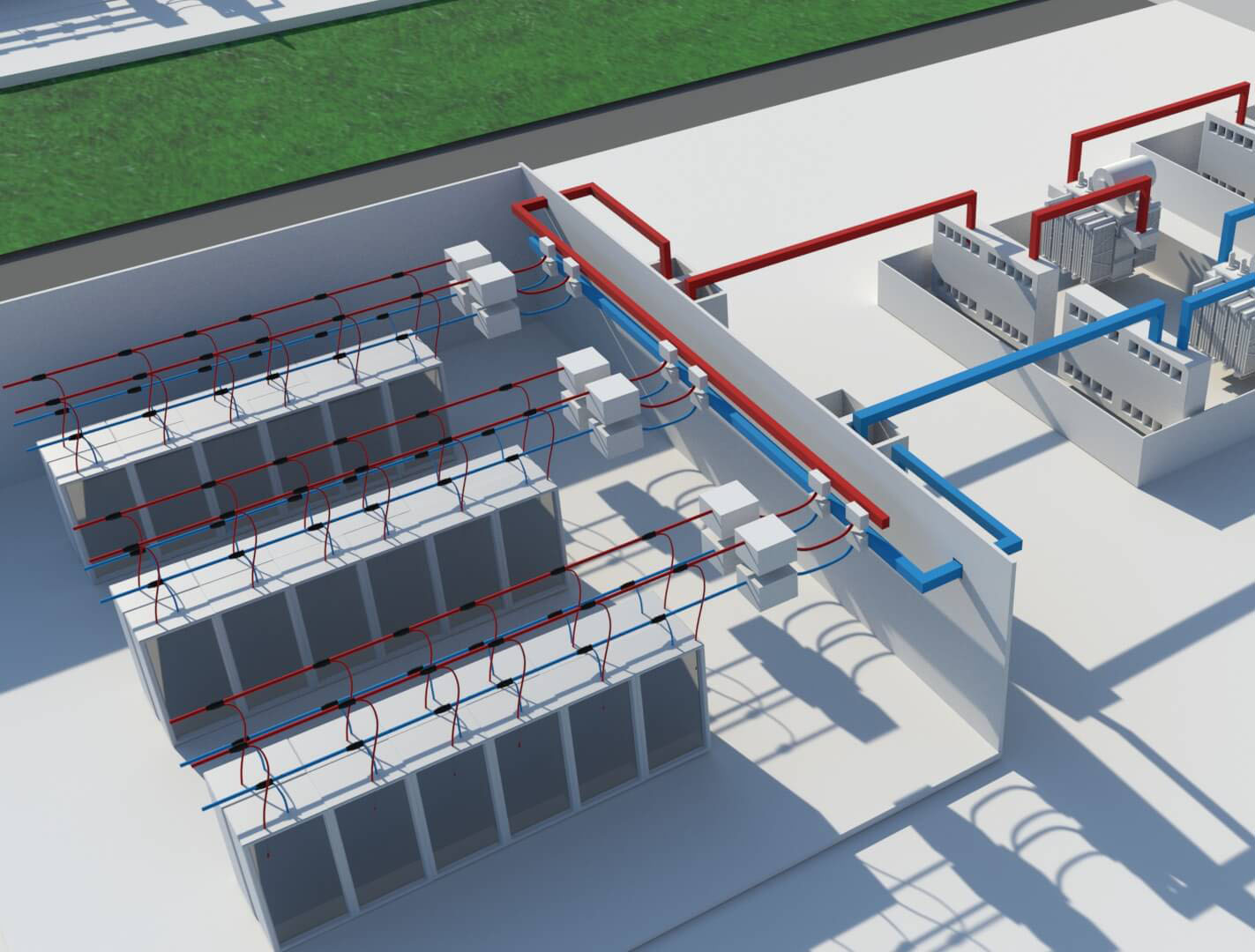

Branch Cable Supplier for data center

 Branch Cables

Power Transmission System - Transformers

Transformers

 Make the most of your energy

Elevated floors and overhead pathways of a building often accommodate and conceal thousands of kilometers of cable and hundreds of meters of Busbar trunking. As a company’s information system is highly significant for business progression, Data Center’s reliability and security promises cannot be compromised at any cost. Furthermore, an uncomplicated installation with minimum downtime and preservation of the building’s existing architecture and constraints is also a prerequisite.

As a supplier and partner in Data Center developments, we must guarantee the following achievements:

  • Energy Efficiency/ Low Voltage Drop
  • Operating Continuity
  • Flexibility To Expand
  • Low Maintenance Frequency
  • Low E.M.F Emission
  • Halogen Free

In decentralized distribution, evolving operating requirements and costs are integrated right from the start.

  • The addition, relocation or replacement of load equipment can be carried out quickly, without de-energizing the supply trunking or shutting down operation,
  • The cost of making such changes is greatly reduced:

□ loads are located close to supply points,

□ plug-in points are always available,

□ plug-in units can be reused or new ones added quickly for load relocation or replacement needs.

Reusable in the event of major changes

When making major modifications to your installation, the existing trunking can be easily dismantled and reused

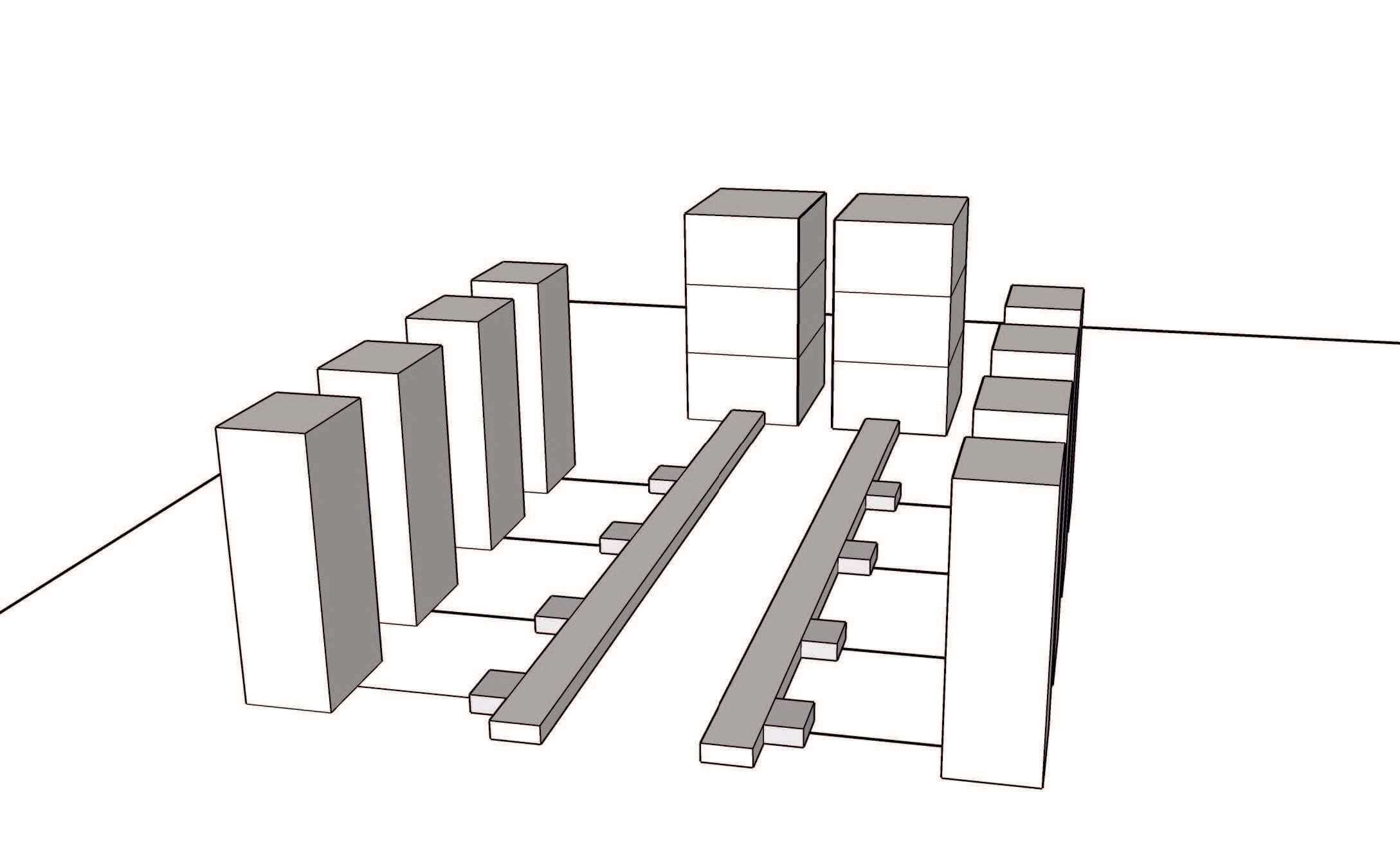

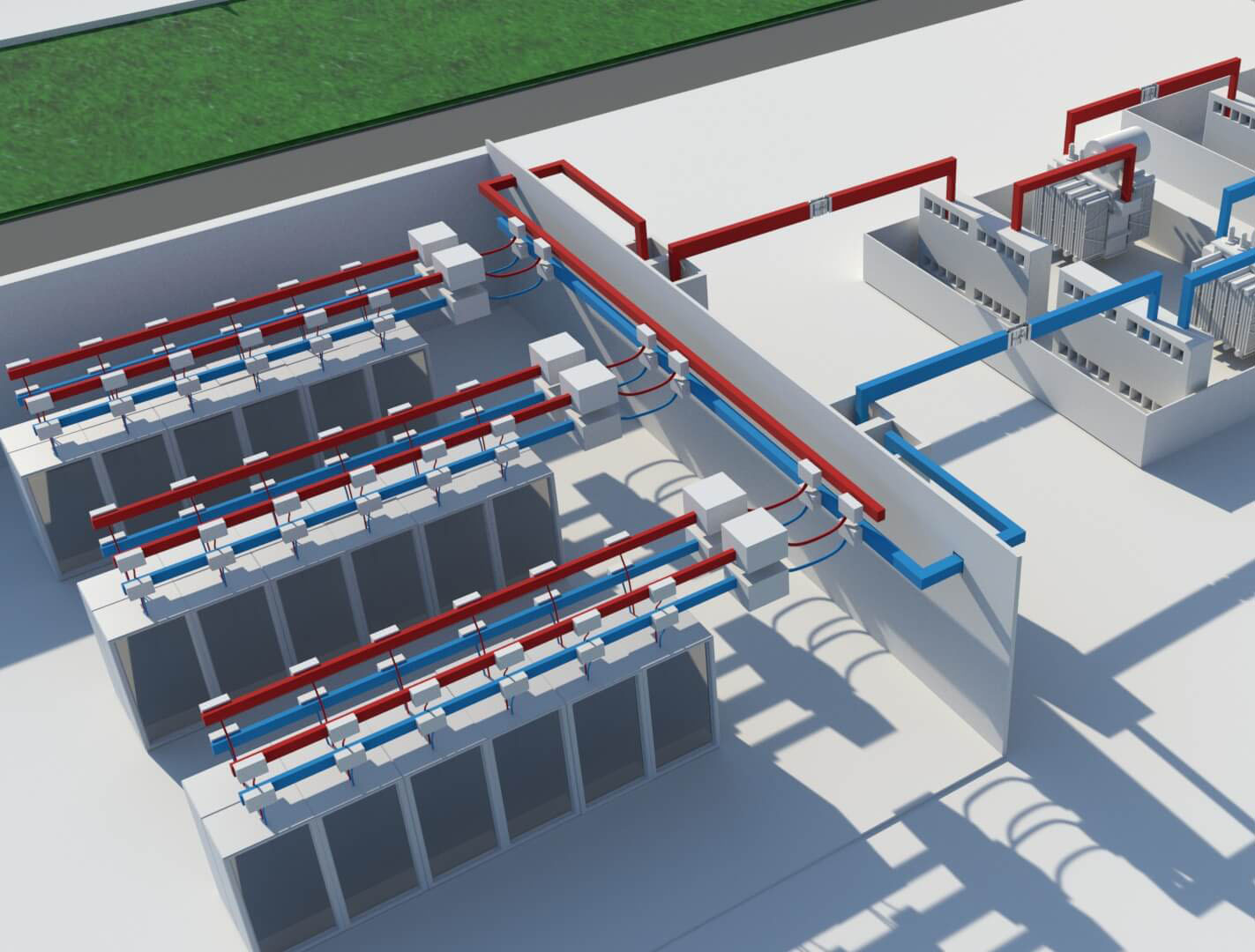

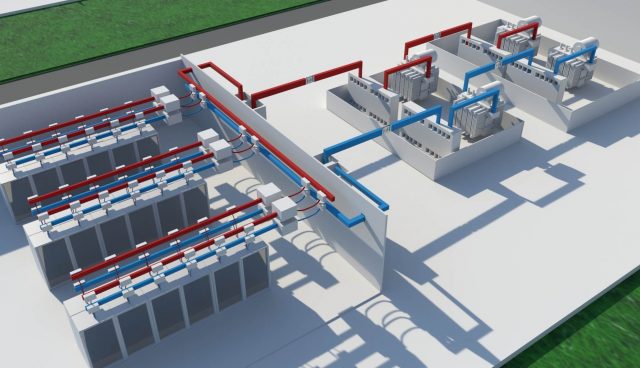

Decentralised power distribution

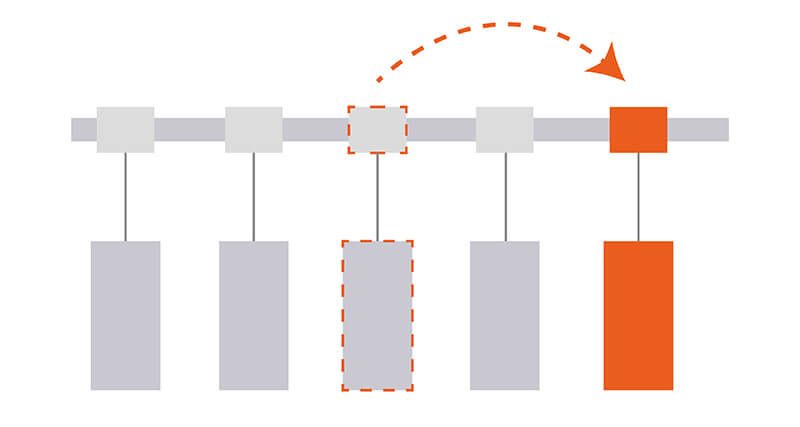

Flexibility of Busbar Trunking System
  • Compact design reduces installation cost, reduce frequency, time and cost for maintenance

  • Able to transmit large volumes of electricity across long distances even in very small spaces

  • Saving space

  • Long-lasting: Simplified design and reduced development time of the project

  • Transmit reliable power with low E.M.F emission: Compliant to Electromagnetic compatibility (EMC) standards with low Electromagnetic Field emission resulting in minimum interference to the data servers.
  • Our products are halogen-free  with no toxicity emission in case of fire
no toxicity emission in case of fire

When working on the electrical installation, the busbar trunking provides immediate readability of the electrical circuit thus allowing the appropriate zone to be quickly identified.

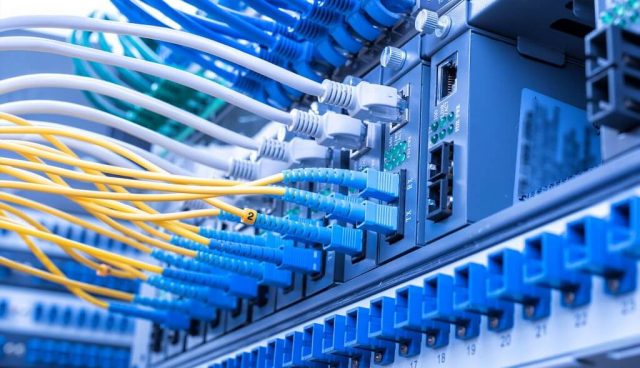

Data Communications

Faster time to revenue

Empowering cloud architectures

Managing the data explosion
