About Tecobar Cast Resin Busway

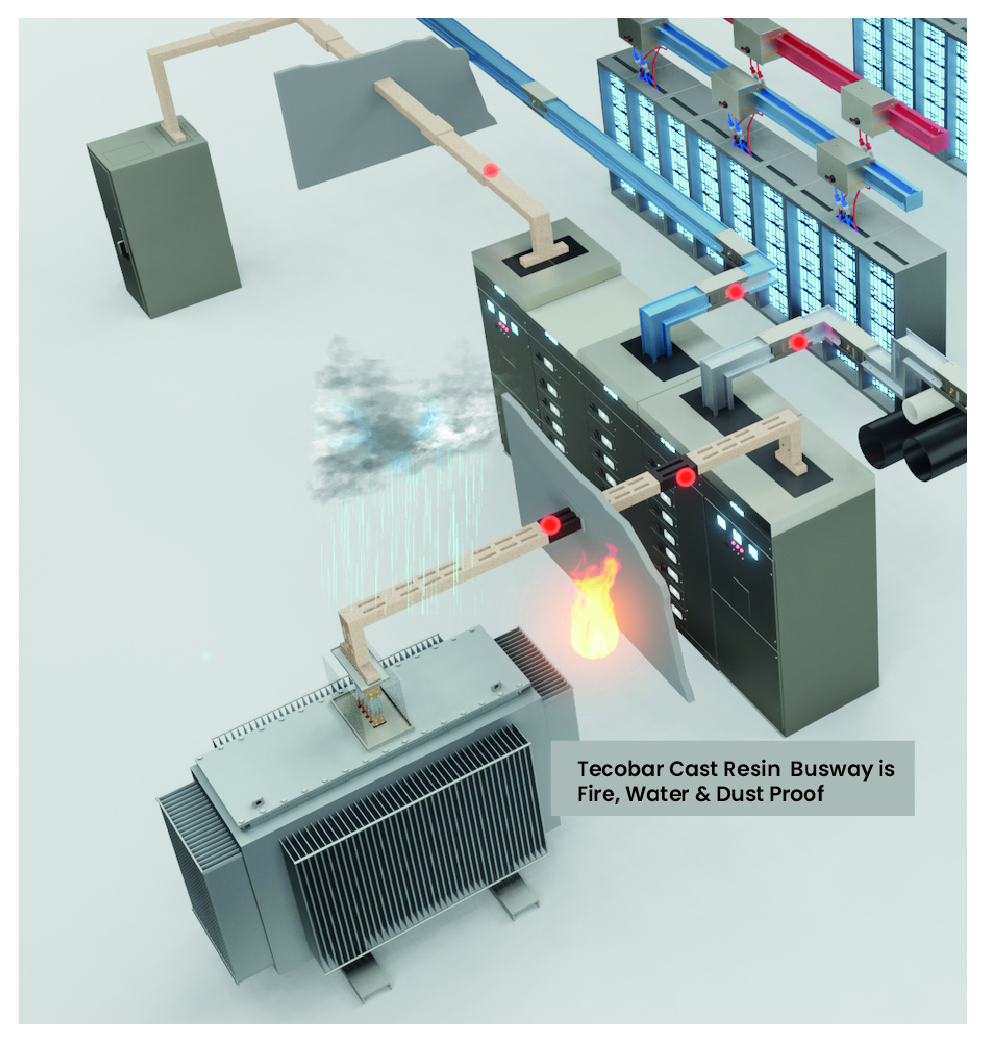

TECOBAR Cast Resin Busway is built with excellent features of electrical characteristic and mechanical strength, fire and waterproof, anti-corrosion, compact size, easy installation and most importantly maintenance-free. Today, TECOBAR has become one of the first choices of power transmission serving broad range of applications

CAST-RESIN INSULATED BUSWAY SYSTEMS

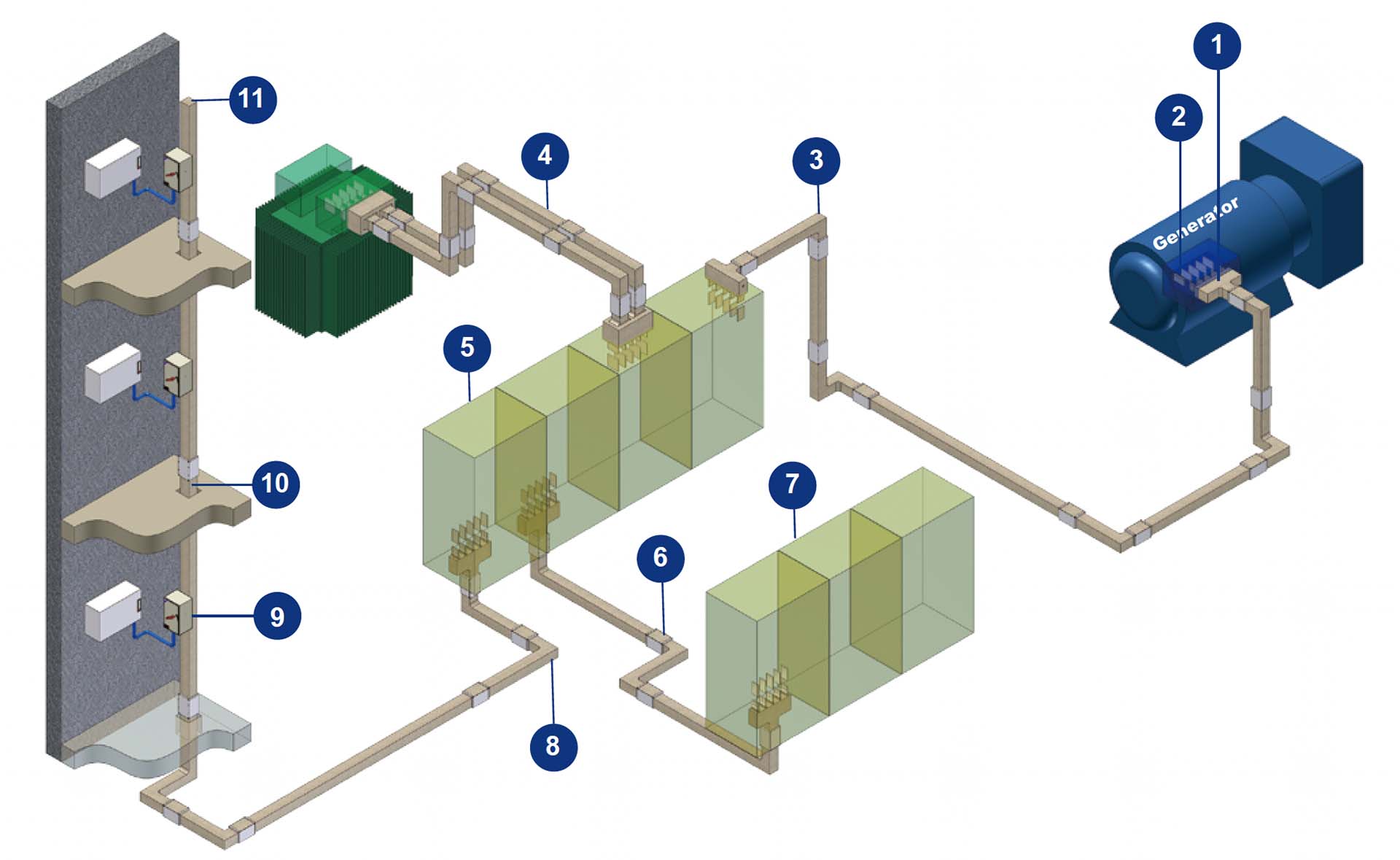

Outdoor Busway System

Applications

  1. Flange End
  2. Flexible Link
  3. Edgewise Elbow
  4. Straight Length
  5. Main Switchboard
  6. Joint
  1. Switchboard/Distribution Board
  2. Horizontal Elbow
  3. Tap-Off Unit (Plug-in Unit)
  4. Spring Hanger
  5. End Cap

Bringing quality and safety to life.

Reliable quality with complete certification

Product quality and capability have been assured and certified by international renowned testing authorities including Dekra, KEMA, UL and approved to be environmental friendly.

TEcobar Certifications
  • Whole busway route cast-resin molded (including the junction part between elements)
  • Full type tested by Dekra and KEMA; China 3C certified
  • Fireproof certified (CNS14286, IEC60331)
  • Highest Protection Level (Waterproof/Dustproof) IP68: LV /MV
  • Best in Class of Mechanical Impact ‒ IK10 (IEC 60068)
  • Seismic Restraint certified including the junction ‒ 0.8G passed
  • Technical Advantages
  • Anti-Explosive certified
  • Anti-Corrosive
  • Electromagnetic Compatibility certified
  • Compact design for easy installation and space-saving
  • High flexibility and custom design to fit in any condition
  • ISO 9001 / ISO 14001 certified
Just send us your questions and we will give you the help you need.

Type: Cast Resin

IP: IP68

Certification:

  • KEMA
  • BS 6387
  • IEC 60331-21
  • IEC 60068 / IEC 60529

Rating: Cu/Al: 400A to 6569A

OPTIMAL ENERGY EFFICIENCY
ZERO INTERFERENCE & HALOGEN FREE
SPACE SAVING
MODULAR, FLEXIBLE & ADAPTABLE TO FUTURE CHANGES
A COMPETITIVE INSTALLATION
Tecobar Cast Resin Busway

Electrical Characteristics

Title: TECOBAR Low Voltage Cast-Resin Insulated Non-Segregated Phase Busway.

Product Description:

  • TECOBAR Low Voltage Cast-Resin Insulated Busway is developed for electrical systems below 1kV.
  • The product has features of safety and compact. It is designed to use the insulation material to perform cast resin sealing to the copper (aluminum) conductor.
  • The insulation material is cast resin which contains non-organic volcanic rock with the features of excellent insulation characteristics, mechanical strength, humidity-proof, non-combustible, and self-extinguishing.

Applicable Scope:

TECOBAR busway is manufactured in accordance with IEC61439-1 and IEC 61439-6 and The elements include as listed below:

  • Straight element, elbow elements geometrical shape, phase-switch element, expansion element, transfer elements, split element and terminal elements.
  • Distribution boxes: There are fixed type tap-off box and draw-out type plug-in box.

Note: The plug-in leads shall be reserved in advance. Therefore, the number of plug-in units shall be confirmed while purchase.

Just send us your questions and we will give you the help you need.

LA Specifications

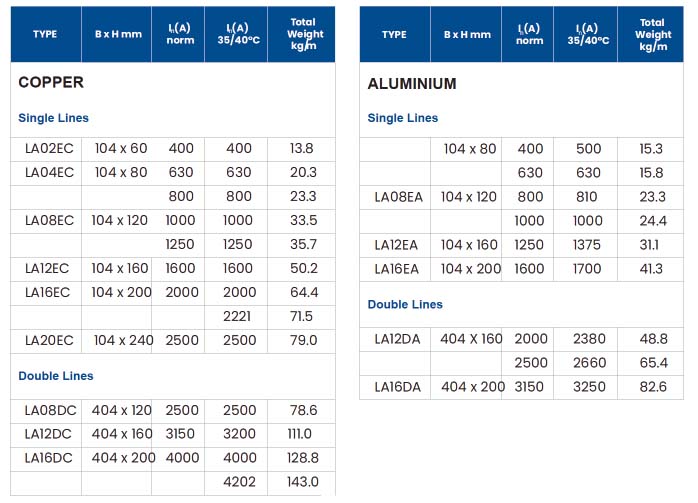

LA - cast resin Specifications

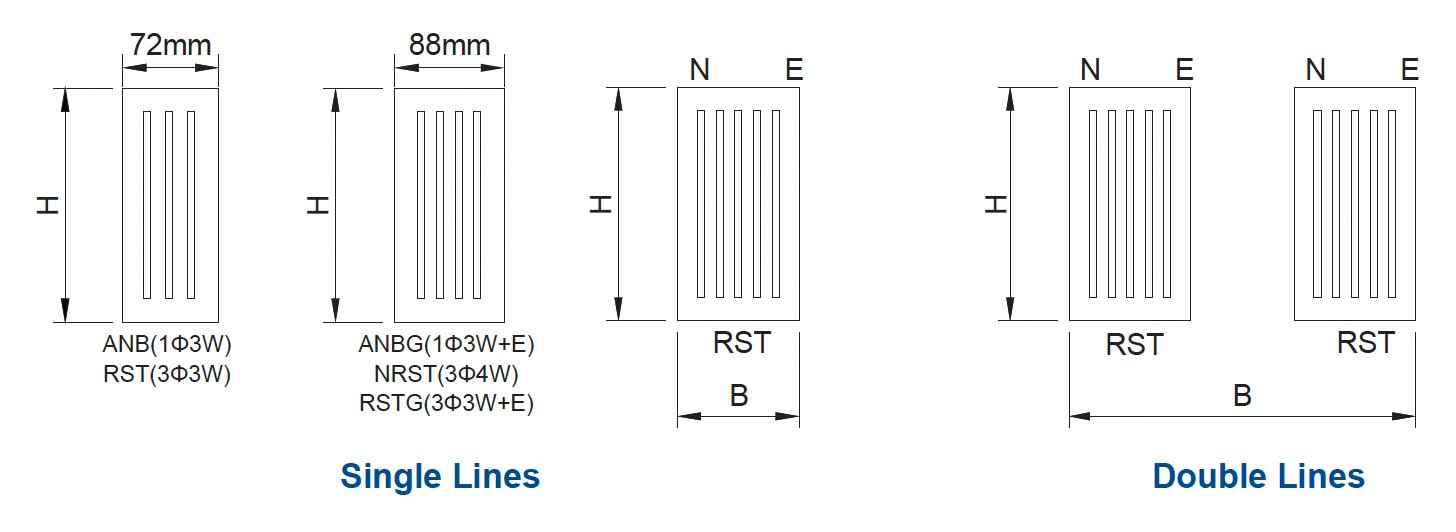

LA Cast Resin Dimension
  • Conductor:
    • 1P3W represents single phase, three wires

    • 3P3W represents three phases, three wires

    • 3P4W represents three phases, four wires.

    • E represents grounding phase 100% of rated current.

    • 200% N and aluminum grounding conductor optional

  • Distance between the two elements among double lines remains 300mm center to center.

  • Applicable to DC requirement.

LB Specifications

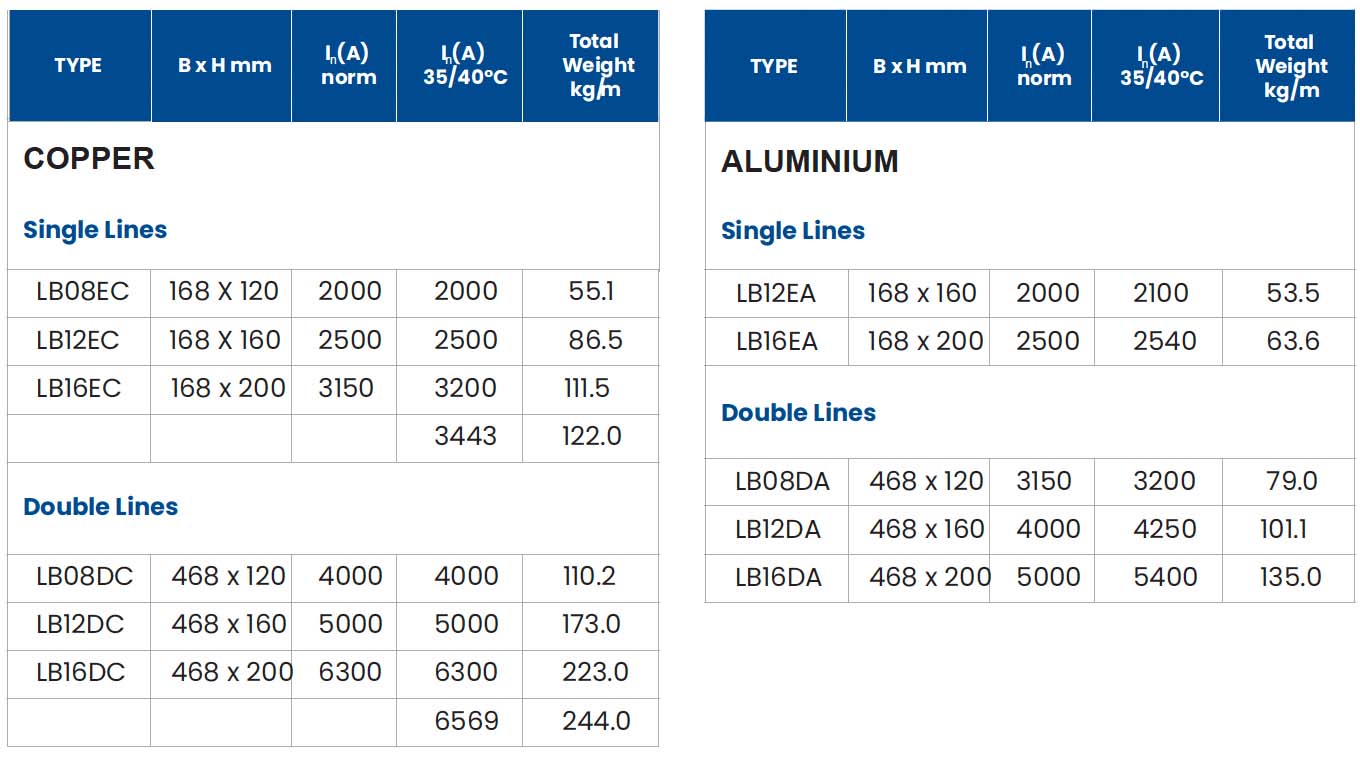

LB - cast resin Specifications

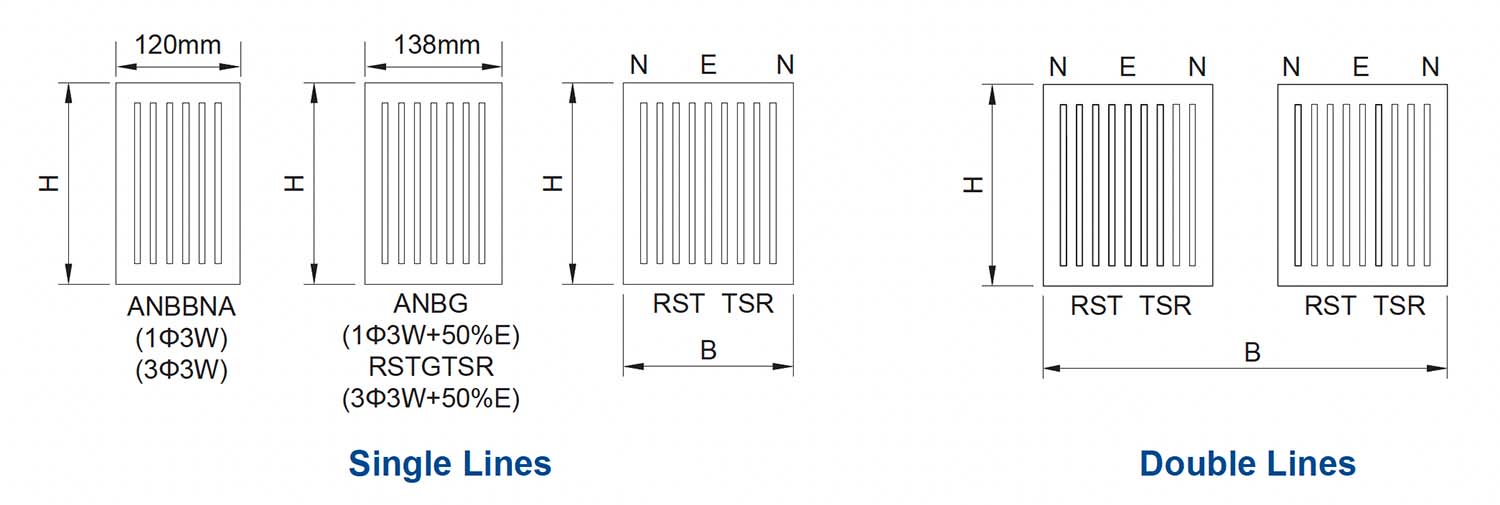

LB Cast Resin Dimension
  • Conductor:
    • 1P3W represents single phase, three wires
    • 3P3W represents three phases, three wires
    • 3P4W represents three phases, four wires.
    • 50%E represents grounding phase 50% of rated current.
    • 200% N and aluminum grounding conductor optional
  • Distance between the two elements among double lines remains 300mm center to center.
  • Applicable to DC requirement.
